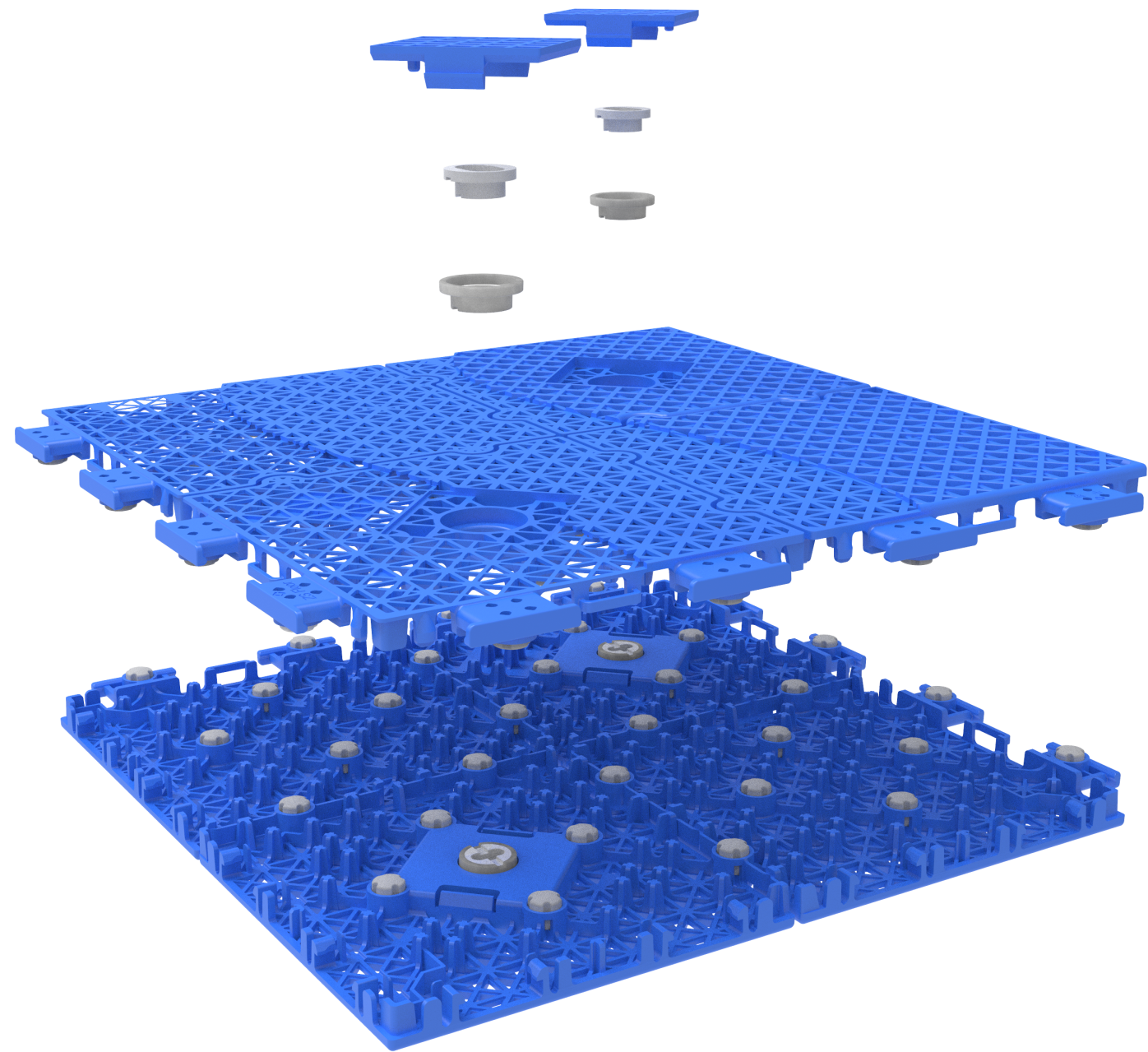

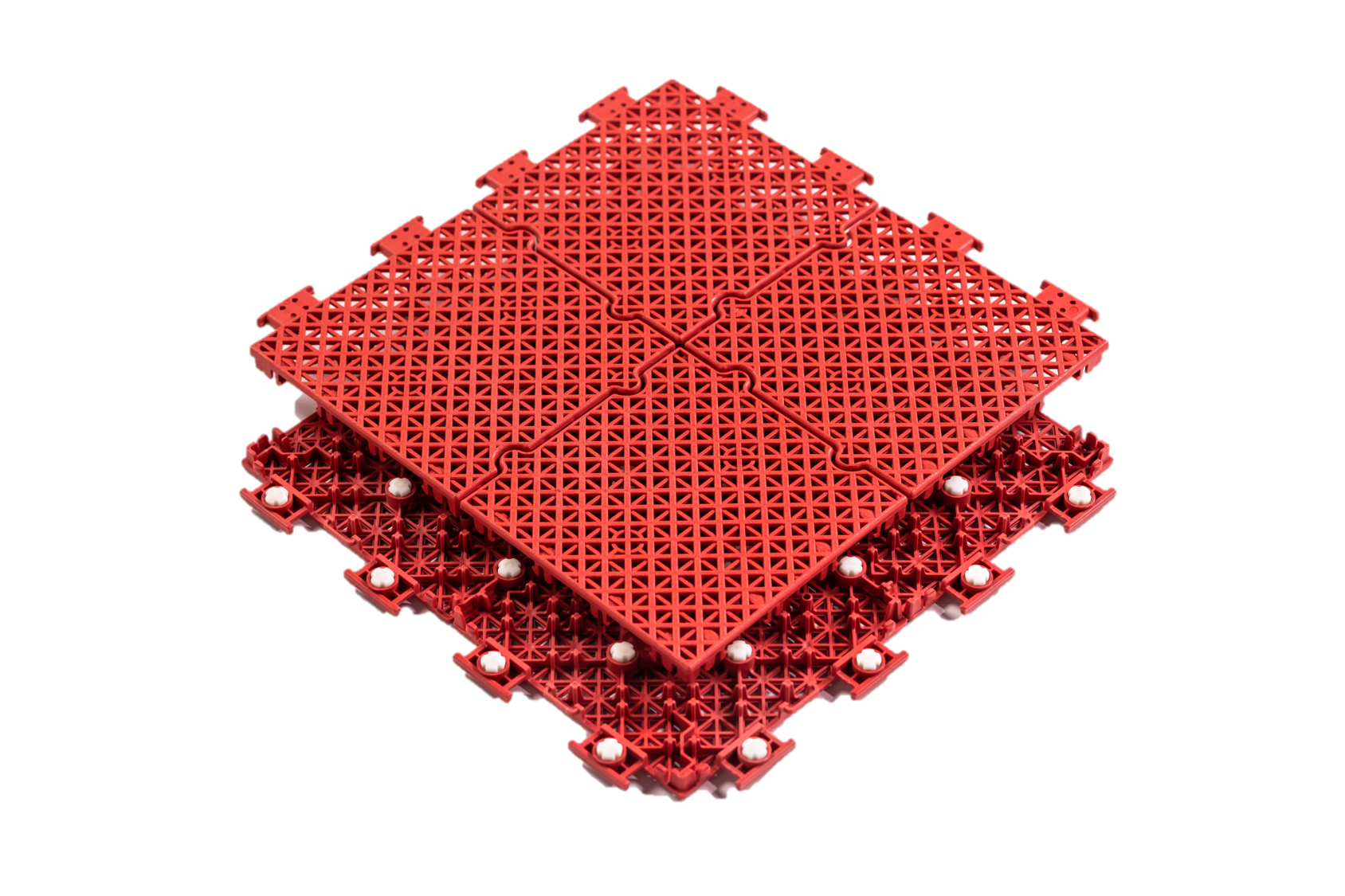

The Elastic Grid Unity is our entry-level interlocking sports flooring tile — engineered with 8-system technology for durability, safety, and consistent court performance.
Thermal Expansion System: More than 4 resilience arms and elastic pillars prevent court bulging caused by heat.
Cold Shrinkage System: 8 elastic sheets and a lateral post prevent cracks from temperature reduction.

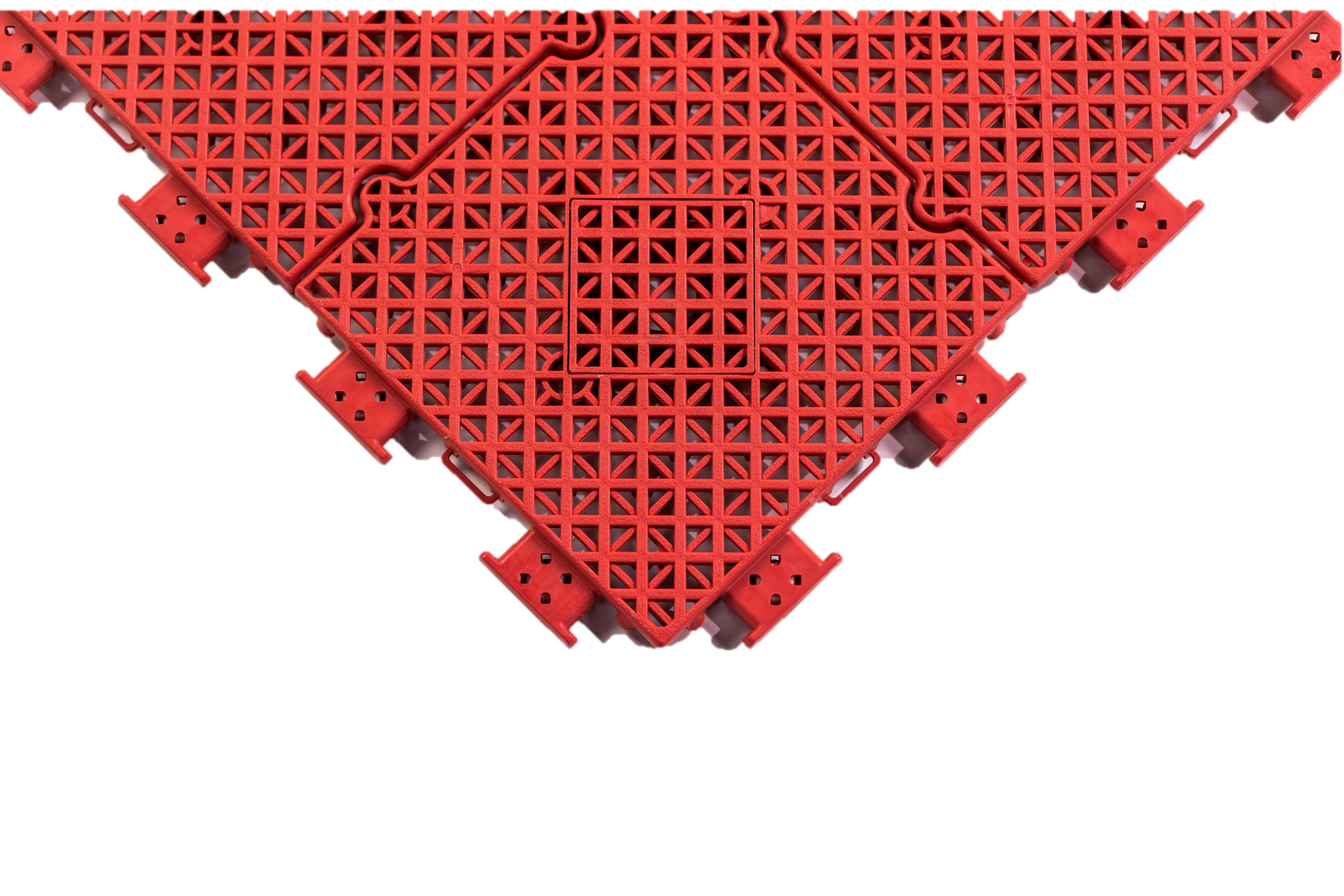

Texture Surface: No-glare, slip-resistant surface for safer play.
Flexible Connection: 4 elastic joints enhance anti-bulging and anti-cracking performance.
Raw Materials: Modified polypropylene, color masterbatch, light stabilizer, TPES.
Strengthened Supporting System: 55 sets of strengthened ribs modeled on professional wooden court design.
Safety System: 2 fixer groups + expansion screws prevent displacement and theft.

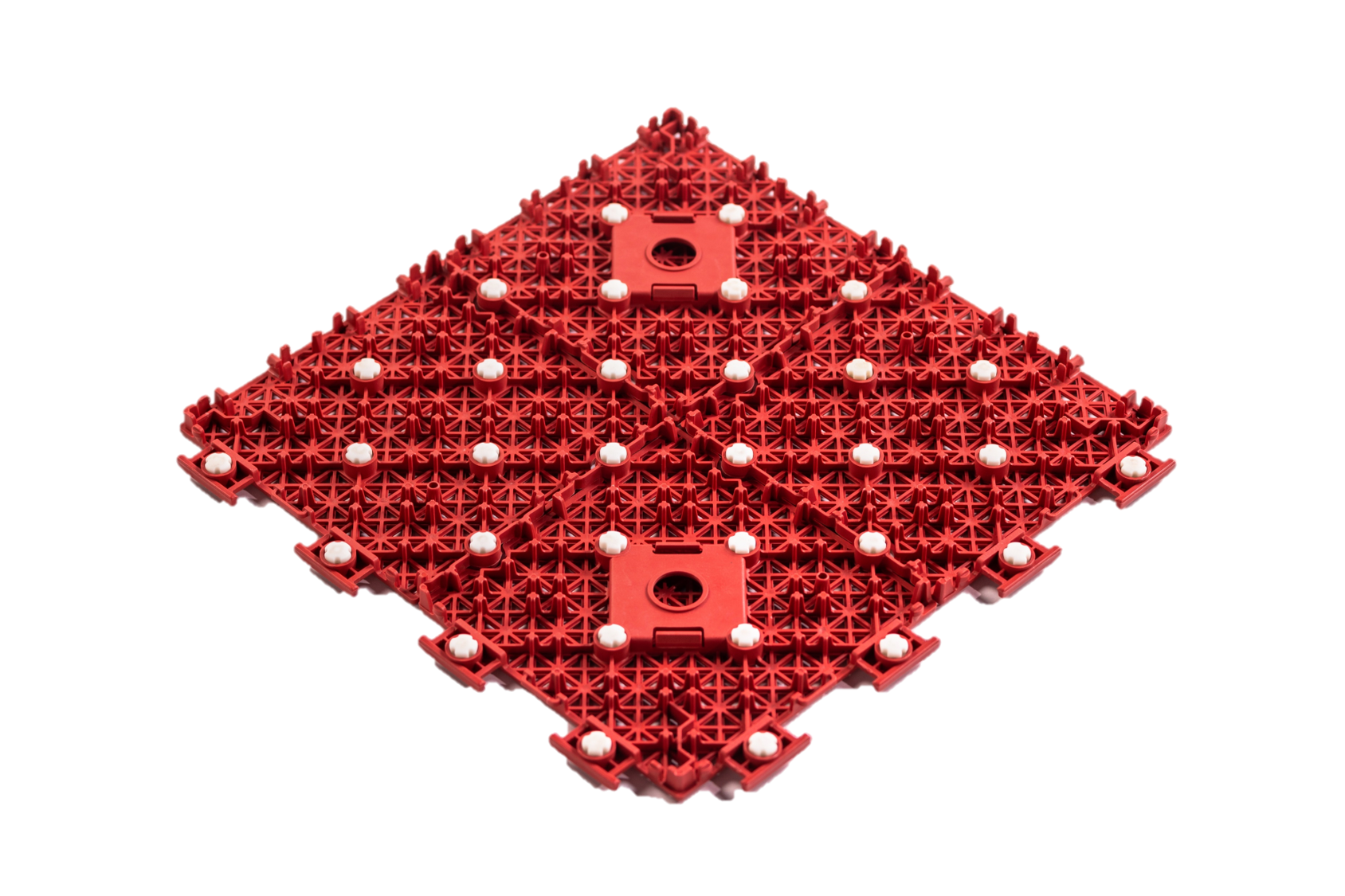

Buffering System: 32 elastic cushions on the underside decompose surface pressure evenly with 100% elastic material.
| Specification | Detail |
|---|---|
| Tile Size | 305 mm × 305 mm × 14.5 mm (±0.15 mm) |
| Weight per Tile | 270 g |
| Warranty | 5 years |
| Lifespan | 10 years |
| Pricing | Per square meter rate |
