The Elite X is our top-tier interlocking sports flooring tile — the thickest and heaviest in the TBW lineup, engineered with 6 reinforced resilience groups and a full 8-system protection design for maximum court longevity and performance.
Thermal Expansion System: 6 resilience arm groups and elastic pillars prevent court bulging from heat. Patent design.
Cold Shrinkage System: 8 elastic sheets and a lateral post prevent temperature-related cracks.

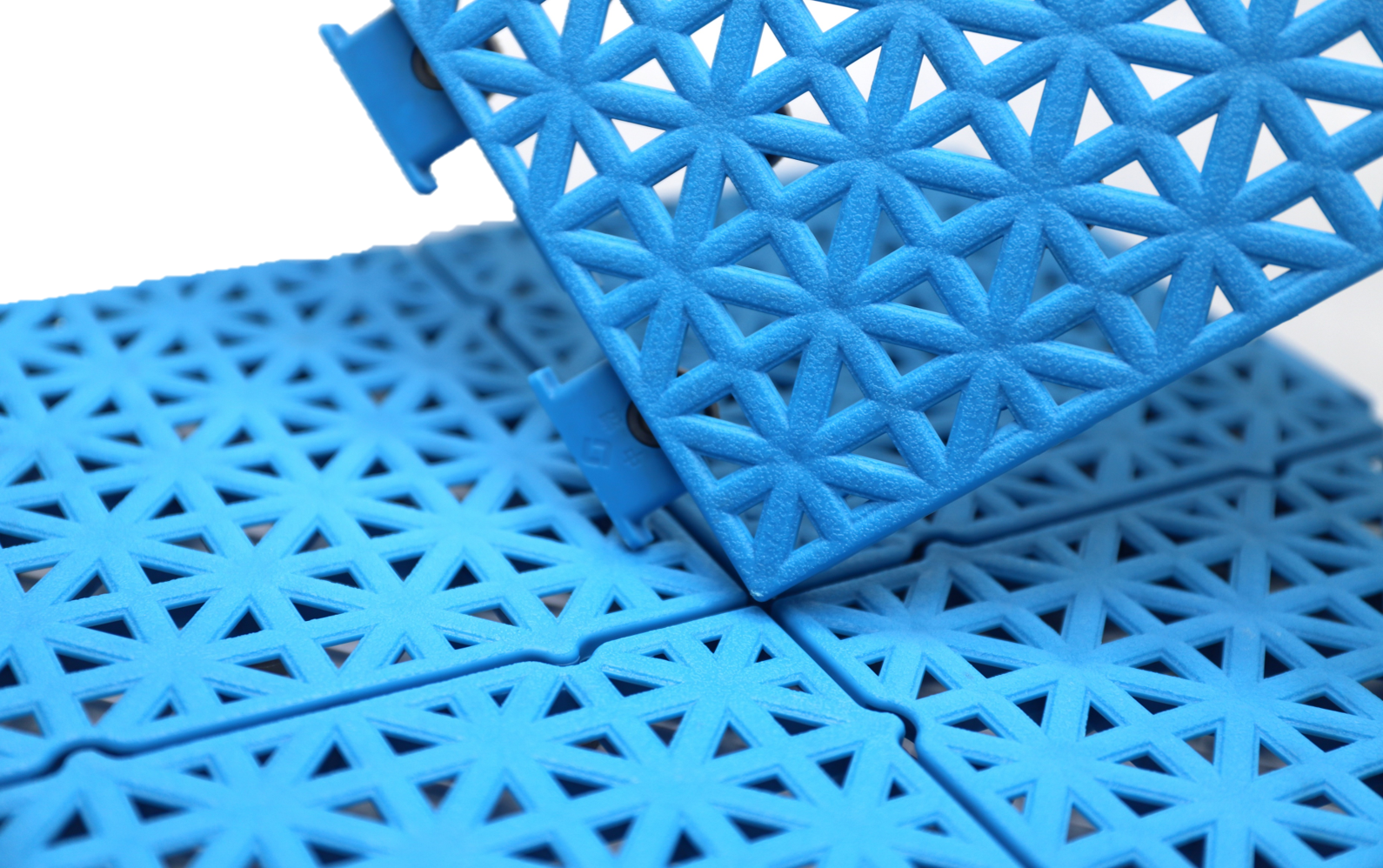

Texture Surface: No reflection, anti-glare, better friction, slip-resistant for safer play.
Flexible Connection: 4 elastic joints enhance anti-bulging and anti-cracking performance.
Raw Materials: Modified polypropylene, color masterbatch, light stabilizer, TPES.
Strengthened Supporting System: 55 strengthened rib sets modeled on professional wooden court design.
Safety System: 2 fixer groups + expansion screws against displacement and theft.

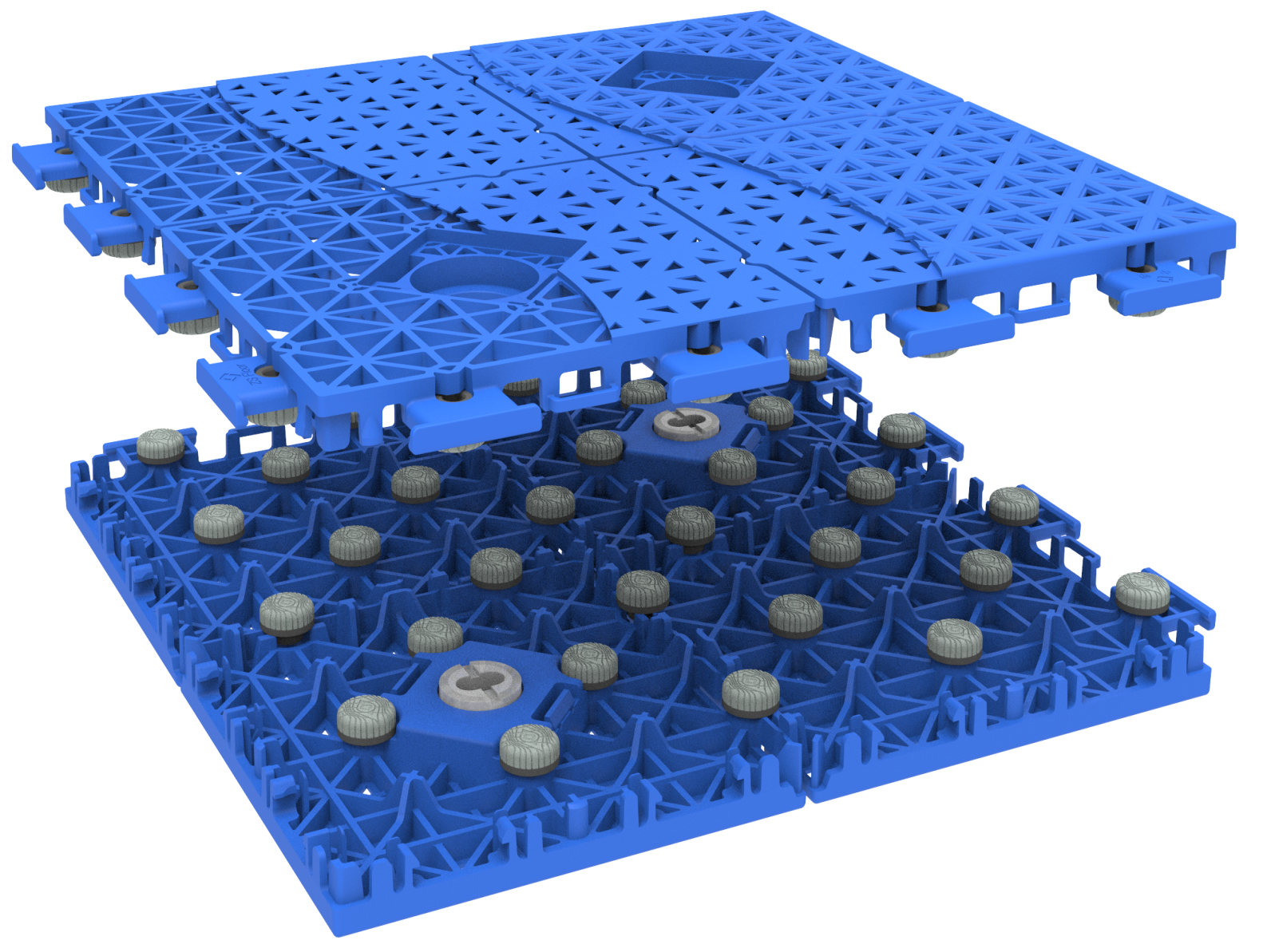

Buffering System: 32 elastic cushions on the underside decompose pressure evenly with widened cushion design for stable, comfortable support.
| Specification | Detail |
|---|---|
| Tile Size | 304.8 mm × 304.8 mm × 19 mm (±0.15 mm) |
| Weight per Tile | 424.8 g (±10 g) |
| Warranty | 5 years |
| Lifespan | 15 years |
| Pricing | Per square meter rate |
